Description of dialogue: Corners and distances

Print Top page

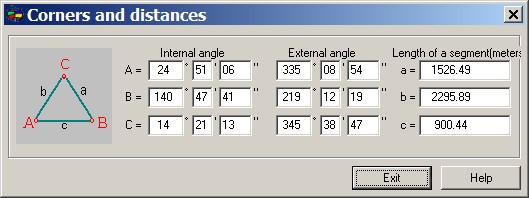

ici_780 The mode is intended for getting measures of lines and the sizes of angles. Measurements are made within the triangle. The operator specifies the points limiting it. As a result of an execution of operation the measuring triangle will be constructed. Values of lengths of the sides and corners of a triangle (internal and external) are displayed in a dialogue window.



_engbm132



For copying into the buffer of an exchange the value of an angle it is necessary on any of fields of the corresponding components containing the values of angles to cause the contextual menu by the right button of the mouse and to choose a line "Copy" . Value of angle will be copied into the buffer of an exchange in a format: degrees minute second, through blanks.
