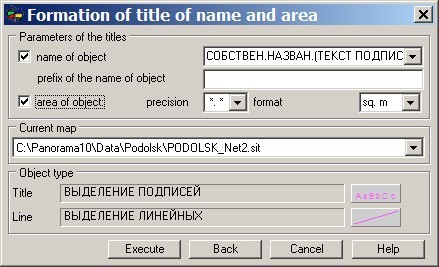

Description of dialogue: Formation of the title of name and area of object

Print Top page

As a result of an execution of operation there is a creation of the title corresponding to the area of object. In that case if on a map the objects are marked the program forms the titles of the area for each of the marked objects. The choice of linear or polygon object is possible.

If linear object will not close, the title is not formed. Creation of titles occurs according to a code specified in parameters of option (page "Editor"). The title is placed in the middle of the first piece of the metrics.



_engbm124

Parameters of the title group allows to specify whether the the name and the area of object will be plotted, and also to specify accuracy and units of measure of the area of object.

Current map  group is intended for a choice of an electronic map on which objects will be created. The edited map can be chosen from the list of the open maps.

Object type  group is intended for a choice of a type of the created title and linear object from the classifier of an edited map.

Back  buttonis intended for a cancelling of operation on creation of objects on an edited map.
