List of embedded documents (cuts)

Print Previous page Top page Next page

Embedded objects list dialog is intended for displaying the list of cuts, which are parts of the map document, and also for control of their properties.

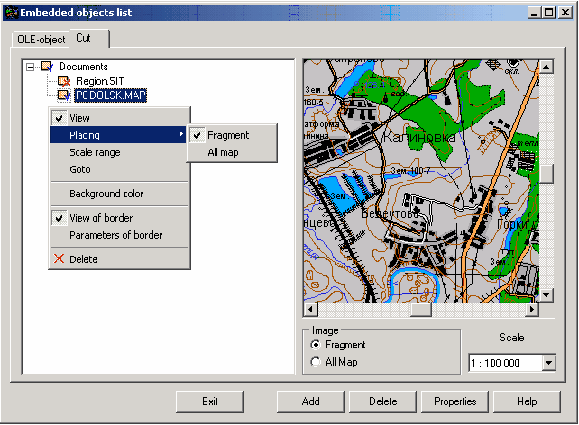

_engbm006



In the left part of dialog in the form of branches of a tree the names of cuts are presented, in the right part - in a special window the current cut is displayed.

Access to properties of cuts is carried out by means of a pop up menu which becomes active by click of the right mouse button on a tree of cuts, or by the Property button.

Modes of parameters change of the current cut:

- View;

- Placing;

- Scale range;

- Go to;

- Background color;

- View of border;

- Parameters of border;

- Delete.



Fragment and All map radiobuttons of Image group operate the Placing property of a cut and allow to switch view of a cut from one mode (Fragment) to another (All map).

At an active mode Fragment the position of a cut concerning a dialog window influences a cut's kind in the map document.

Properties of a cut can be changed without dialog if to click on a cut by the right mouse button and to choose corresponding item of a pop up menu.
