Creation of blocks in settlements

Print Previous page Top page Next page

ic_7992 This mode (Make Building) is used for plotting settlements with regular building up.

He implies sequential usage of several modes of the Map Editor.

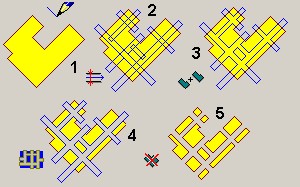

At first a common contour of regular building is digitizing.



_engbm411



Then the digitizing of streets and ways is made (plotting mode it is a parallel line, width of a plotted band is set in the editor options or is customized under the image by keys + and - of padding keyboard).

After that the merge of the marked bands is made.

After activating Make Building mode you must sequentially select a common contour and merging massif of streets on a map.

After execution of the mode you can delete the massif of streets by using Deleting of map object mode.
