Appear license

Print Previous page Top page Next page

System uses three kinds of licenses:

- fixed hardware license (USB key);

- fixed license (registration key);

- floating hardware license (USB key).



Fixed hardware licence presupposes presence of software protection dongle USB on each workstation. The fixed licence presupposes a choice of a key type - standard key Guardant or a key of protection Guardant micro. The key should be connected to USB port on the workstation from which the program is started.

Floating hardware license - the presence in the local network of one USB dongle and a running licenses server that allows you to simultaneously execute the paid number of copies of programs on any computers by alternately connecting. When using a floating license, the Guardant Net key must be installed onto the workstation in the local network on which the license server is installed. Otherwise, the server (as well as the Guardant Net client) will not be able to detect the key.

Fixed license presupposes binding the program to the computer's parameters based on the registration data sent by e-mail.

To access the systems license, the Guardant USB dongle is used. Depending on the type of license (fixed hardware or floating hardware), you need to use your kind of key.

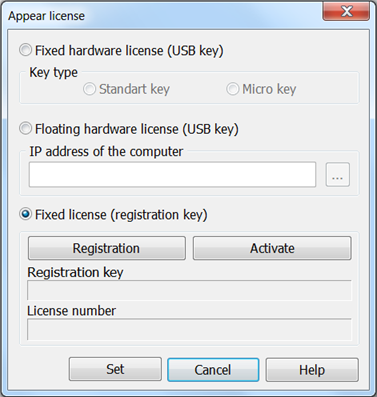

Dialogue «Appear license» is intended to indicate the type of the used program license.





_bm5462



At use of the floating license in dialog it is necessary to enter the IP-address of a workstation on which the server of licenses and the USB dongle are installed.

IP-address is formed automatically at activation of the button of choosing a network name.

Working with the server of licenses is described in detail in the user's guide.



_bm5463



Procedure for setting the activation of the license kind.



Procedure for setting the registration of the license kind.
