Settings for copy of objects to other map

Print Previous page Top page Next page



_engbm361

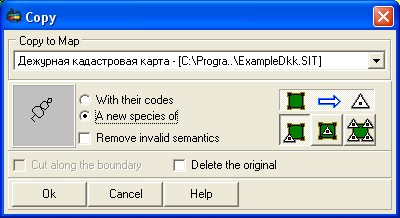

After activation of dialogue, first of all, it is necessary to choose a map onto which copying the selected objects will be made. Thus, at the list of maps accessible to a choice there are only the maps available to record.

Copying of objects to the "own" map (duplication of objects) is not made.

If the option «With their codes» is used, objects onto other map will be moved without changing code.

If a map - the source and a map onto which copying objects will be made, have identical classifiers or in the classifier of a map onto which copying object is made, there is an object with the same classification code, the object will not change.

Otherwise to the object the system code will be assigned, and into its semantics the record with value of the source code (before copying) will be added.

At inclusion of an option «A new species of» or "clique" on the image of appearance of object is made a choice of object's type from the classifier corresponding to a map chosen for copying is made. In this case all the selected objects at copying will be led to identical type (including irrespective of their original localization).

Thus for code conversion of non-point objects into point it is offered to choose one of three options: to take the first point of the metrics, to calculate the geometrical center of original object or to place new point objects at all points of the metrics of original object.

In a conversion of point, vector objects, as well as titles and mixed into polygon objects are automatically generated rectangular polygon by the image sizes of the original object.



At code conversion of point objects, titles and mixed objects into linear or vector objects there is formed the metrics of a horizontal line consisting of two points.

At formation of titles the text of the title is taken from semantics «Title text» (a code of the characteristic: 9).
